Addressing, configuration and maintenance via NFC.

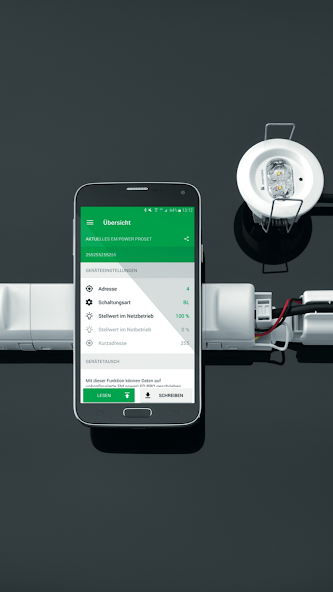

Thanks to the PROset technology, the addressing, configuration and maintenance of the emergency luminaires is a breeze: the luminaires equipped with the new EMpower PROset control gear can be programmed directly via NFC interface of control gear.

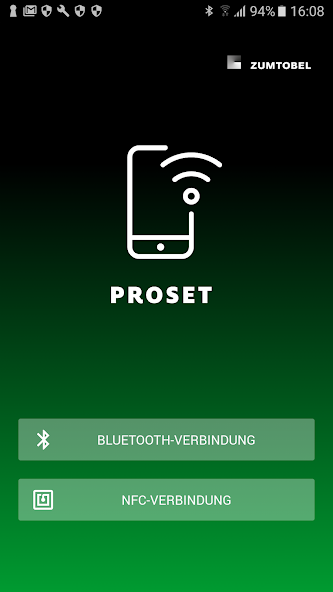

Procedure: The control gear of the luminaire can be programmed directly via the PROset App. Alternatively, the smartphone can be paired with the PROset Pen via Bluetooth (e.g., if the smartphone cannot access the control gear installed in the luminaire) -> Select "Connection via Bluetooth" on the start screen.
Note: Before the first writing process, a control gear must be read out -> The article number and designation of the luminaire as well as the address range are available.

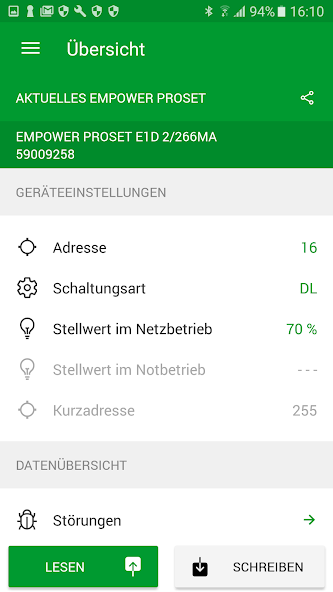

Addressing: small, difficult-to-operate rotary switches belong to the past. The address can be selected by simply scrolling.
Switching mode: Selection between maintained light (switched on in mains and emergency operation) and non-maintained light (switched off in mains operation). Setting for luminaires without connection to a system / parameter is overwritten by the system to "maintained light".
Dimming level: Setting of the dimming level in mains operation (AC level) and in emergency operation (DC level, only for centrally supplied emergency luminaires). Setting for luminaires without connection to a system / parameter is overwritten by the system to default settings.
Maintenance / Black box feature: With the new NFC interface, statistics such as errors, temperature, tests and operating times are immediately available.
Maintenance / device exchange: simple control gear exchange via the NFC interface. The configuration data (operating parameters of the LEDs) can be copied from an old control gear or selected from a database.
Device exchange via copy function: Activate device exchange -> Read out the configuration data from the old control gear -> Write the configuration data on the new control gear. The address, switching type and dimming levels are also transferred.
Device exchange via the database: Select the article number -> Write the configuration data on the new control gear. Address, switching mode and dimming levels can be configured in a second step.
Features of the app:
- Fast and easy operation
- Easy setting of the address via a scroll wheel. The simple configuration excludes incorrect switch settings.
- Configuration of the luminaire (switching mode, dimming levels) possible without central controller.
- Maintenance: The Black box function displays statistics such as errors, temperature, tests and operating times. Contents of the black box data can be forwarded to the headquarters for further analysis.
- Control gear exchange via the copy function or the integrated database
What´s new:
- Addressing, configuration and maintenance of emergency luminaires via NFC interface
Download
