Step by step tutorial with formulas and solution for transistor dc biasing.

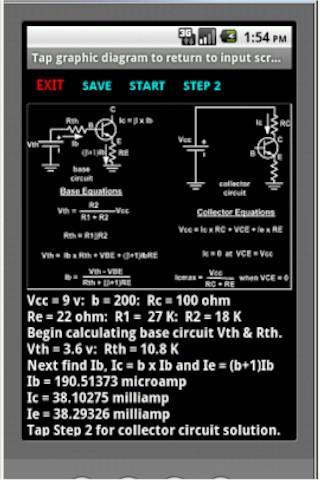

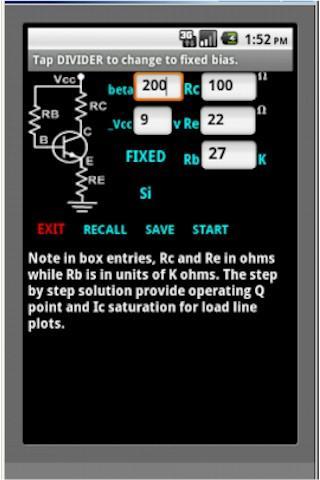

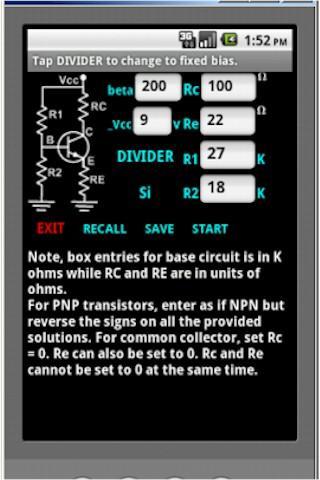

This app shows step by step all the calculations and theory in finding the dc bias conditions for BJTs for any given set of resistors, beta and power supply voltage.
The app also finds the points on the loadline such as Ic operating point and Ic saturation current.
Download
