Arduino Bluetooth Servo Motor Control Application
Arduino Bluetooth Servo Motor Control Application is allow you to control Servo Motor position.( 0 - 180 degree )
This App must connect to Arduino Board and Bluetooth Module then control Servo Motor.
The Application Features

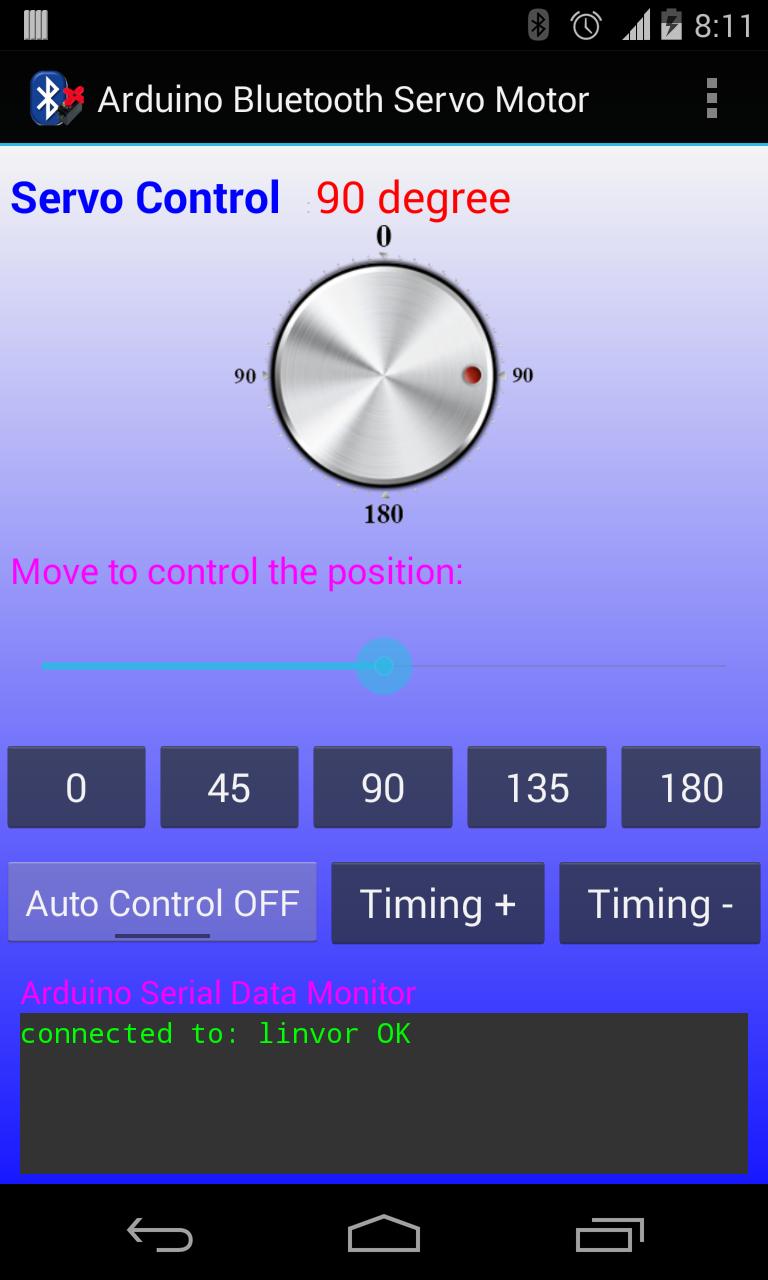

- Control 0 - 180 Degree of Servo Motor position with progress bar , knob and Fixed degree.( PWM Output )
- Auto Control Function and can adjust timing to control.

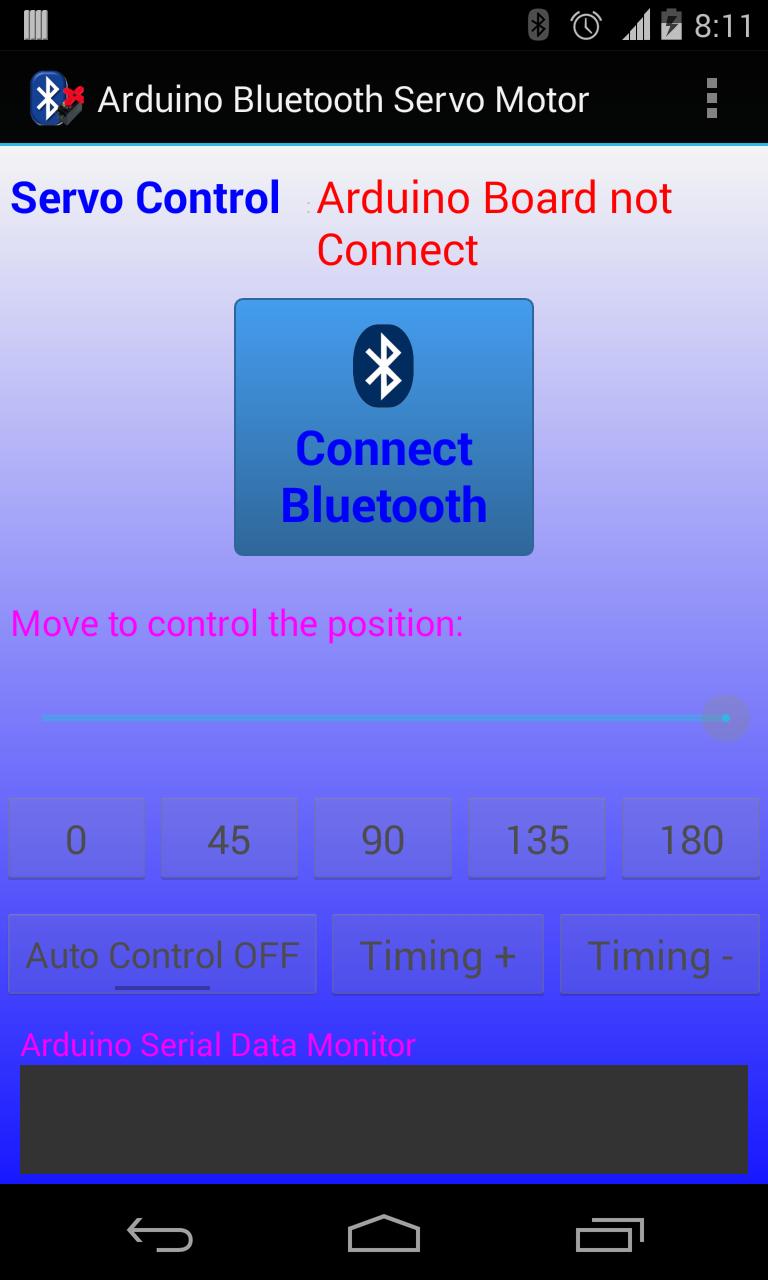

- Show Bluetooth Connection Status and Serial Data monitor. When not connect Arduino Board yet.(User Interface Disable.) When Bluetooth connected already. Then enable UI. and ready to Control.
- Free Version with Ad.
External Hardware
1. Arduino Board or compatible Board.
2. Serial TTL Bluetooth Module
3. Servo Motor ( We use FUTABA Model S3003 or other)
Arduino Source Code ( same USB Version )
Arduino Code ( You need to program into Arduino Board. )
Visit Hardware page at
http://microcontrollerkits.blogspot.com/2014/01/arduino-usb-control-servo-motor.html
======================
Manual and details.
http://androidcontrol.blogspot.com/2014/01/arduino-bluetooth-servo-motor-control.html

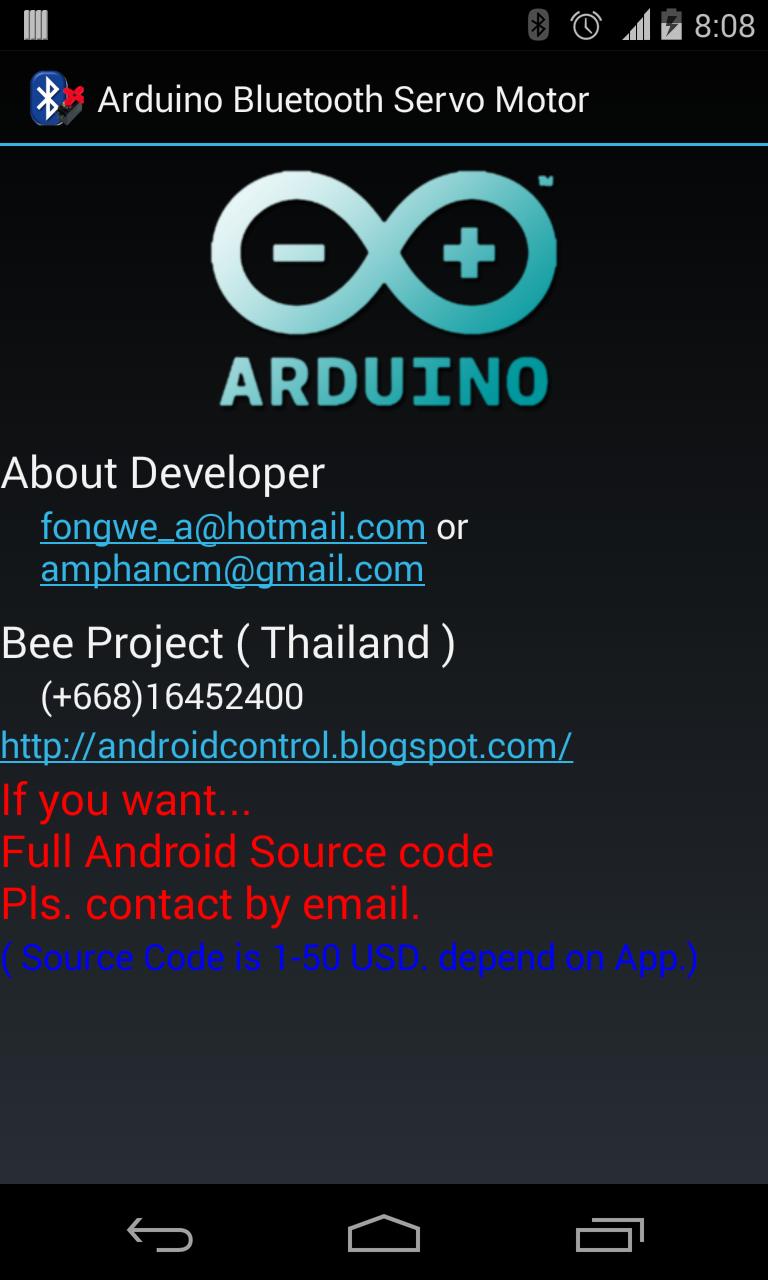

Full Android Source Code. It cost 10 - 50 USD.
Please contact [email protected]
30 Jan 2014
Download
